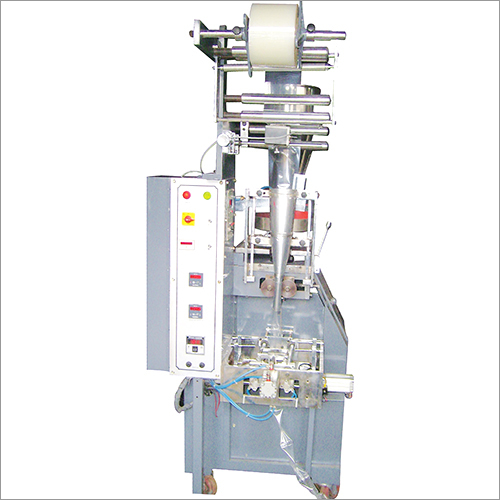

Pneumatic Liquid Triangle Pouch Machine
Product Details:
X
Product Description
Dedicated to offer unquestionable quality range to the clients, we are engaged in manufacturing and exporting Pneumatic Liquid Triangle Pouch Machine. Our entire range of vertical FFS is engineered by our motivated professional employing tested quality materials. Broadly used in food & beverage industries, these products are provided to our clients within stipulated time frame. Our Pneumatic Liquid Triangle Pouch Machine is also tested on various parameters to match with the international quality standards.
Features:
- Rust resistance
- Smooth performance
- Durability
Specifications:
Vertical Sealing | By Heated rollers (intermittent type). |
Horizontal sealing | Two units of Sealing in triangle shape (Pneumatic) |
Paper Pulling | By sealing rollers, controlled by clutch-brake unit. |
Packing size | Upto 200 mm roll width. |
Packing Material | Heat sealable laminates. |
Speed | Up to 80 pouches / minute. |
Compressed air | 2-3 cfm at 6 Kg./sq. cm. |
Power required | 220 V AC Single phase, 50 Hz., 3 kW (max). |
Filling System |
|
Optional Attachments |
|
